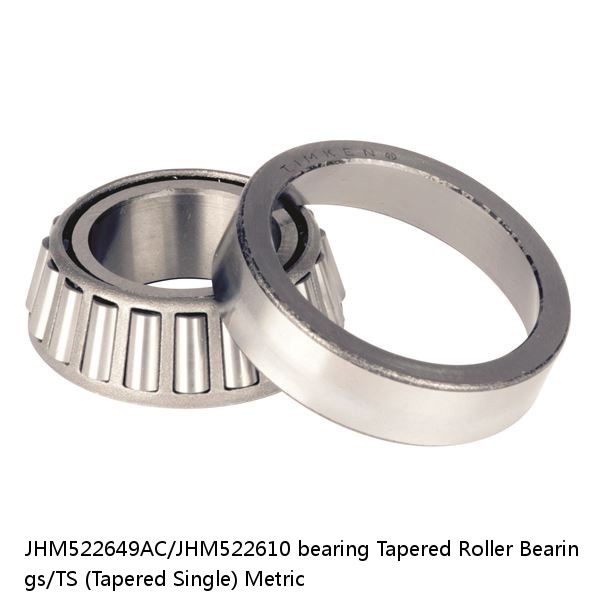

JHM522649AC/JHM522610 bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
JHM522649AC/JHM522610 PDF download| Price： | enquiry |
| Model Number： | JHM522649AC/JHM522610 |
| Series： | 47.000 mm1.8504 in |
| r - Cup Backface "To Clear" Radius2： | HM522600 |
| Design Units： | 2.54 mm0.1 in |
| Db - Cup Backface Backing Diameter： | 7.110 mm0.280 in |
| da - Cone Frontface Backing Diameter： | 259.2 |
| Series | HM522600 |
| Cone Part Number | JHM522649AC |
| Cup Part Number | JHM522610 |
| Design Units | METRIC |
| Bearing Weight | 4.5 Kg9.9 lb |
| Cage Type | Stamped Steel |
| d - Bore | 110 mm4.3307 in |
| D - Cup Outer Diameter | 180 mm7.0866 in |
| B - Cone Width | 46.000 mm1.8110 in |
| C - Cup Width | 38 mm1.4961 in |
| T - Bearing Width | 47.000 mm1.8504 in |
| R - Cone Backface "To Clear" Radius1 | 7.110 mm0.280 in |
| r - Cup Backface "To Clear" Radius2 | 2.54 mm0.1 in |
| da - Cone Frontface Backing Diameter | 121.92 mm4.8 in |
| db - Cone Backface Backing Diameter | 137.92 mm5.43 in |
| Da - Cup Frontface Backing Diameter | 172 mm6.81 in |
| Db - Cup Backface Backing Diameter | 162.05 mm6.38 in |
| Ab - Cage-Cone Frontface Clearance | 4.6 mm0.18 in |
| Aa - Cage-Cone Backface Clearance | 2 mm0.08 in |
| a - Effective Center Location3 | -5.8 mm-0.23 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 114000 N25700 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 440000 N98900 lbf |
| C0 - Static Radial Rating | 554000 N125000 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 79200 N17800 lbf |
| K - Factor7 | 1.44 |
| e - ISO Factor8 | 0.41 |
| Y - ISO Factor9 | 1.48 |
| G1 - Heat Generation Factor (Roller-Raceway) | 259.2 |
| G2 - Heat Generation Factor (Rib-Roller End) | 52.1 |
| Cg - Geometry Factor10 | 0.113 |
| No. | Series | r - Cup Backface "To Clear" Radius2 | Design Units | Db - Cup Backface Backing Diameter | da - Cone Frontface Backing Diameter | D - Cup Outer Diameter |
|---|---|---|---|---|---|---|
| LCJT 1 7/8 | 6.005 lb2.724 Kg | 188.9 mm7.437 in | 115.9 mm4.563 in | 5210 lbf23200 N | 1 7/8 in47.6 mm | Industrial |
| 23184B | 23184B | 354.000 | 0.0 | 420 | 6.0 | 530 |
| 29432E | 95 | 306.0 | 160 | 5.0 | 35.9 | 1000 |
| KR1501A-0025-HR1-10WN-05D | KR15 | - | - | - | - | - |
| SNL 3064 G + 23064 | 830 | SNL 3064 G + 23064 | 591 | SNL 3064 G + 23064 | 320.000 | 480.000 |
| T4CB130 | 0.70 | _ | 130 | 2.5 | 3.0 | 3.0 |
| UCC328 | A-PT1/8 | 140 / Heavy-duty(3) | 140 | Heavy-duty(3) | UCC328 | - |
| TCJT 30 | 2.403 lb1.09 Kg | 141.3 mm5.563 in | 79.4 mm3.126 in | 2530 lbf11300 N | 1.181 in30 mm | Industrial |
| NA4956 | 2.10 | NA4956 | 27.5 | 1300 | 850 | 380 |
| 53315 | 77 | 75 | 1.5 | 1900 | 1200 | 53315 |
