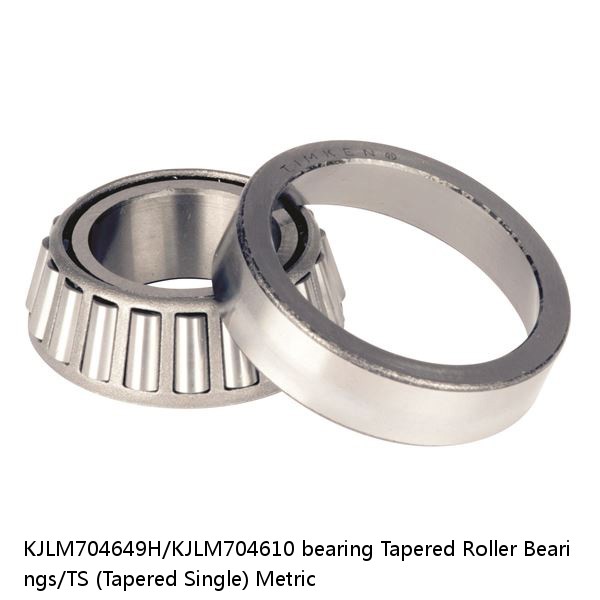

KJLM704649H/KJLM704610 bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
KJLM704649H/KJLM704610 PDF download| Price： | enquiry |
| Model Number： | KJLM704649H/KJLM704610 |
| Series： | 22.000 mm0.8661 in |
| r - Cup Backface "To Clear" Radius2： | LM704600 |
| Design Units： | 1.52 mm0.06 in |
| Db - Cup Backface Backing Diameter： | 3.560 mm0.14 in |
| da - Cone Frontface Backing Diameter： | 35.6 |
| Series | LM704600 |
| Cone Part Number | KJLM704649H |
| Cup Part Number | KJLM704610 |
| Design Units | METRIC |
| Bearing Weight | 0.5 Kg1 lb |
| Cage Type | Stamped Steel |
| d - Bore | 50.000 mm1.9685 in |
| D - Cup Outer Diameter | 84.000 mm3.3071 in |
| B - Cone Width | 22.000 mm0.8661 in |
| C - Cup Width | 17.500 mm0.6890 in |
| T - Bearing Width | 22.000 mm0.8661 in |
| R - Cone Backface "To Clear" Radius1 | 3.560 mm0.14 in |
| r - Cup Backface "To Clear" Radius2 | 1.52 mm0.06 in |
| da - Cone Frontface Backing Diameter | 55.88 mm2.2 in |
| db - Cone Backface Backing Diameter | 61.98 mm2.44 in |
| Da - Cup Frontface Backing Diameter | 80.77 mm3.18 in |
| Db - Cup Backface Backing Diameter | 75.95 mm2.99 in |
| Ab - Cage-Cone Frontface Clearance | 2 mm0.08 in |
| Aa - Cage-Cone Backface Clearance | 0.8 mm0.03 in |
| a - Effective Center Location3 | -2.3 mm-0.09 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 25000 N5620 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 96500 N21700 lbf |
| C0 - Static Radial Rating | 104000 N23500 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 18700 N4210 lbf |
| K - Factor7 | 1.34 |
| e - ISO Factor8 | 0.44 |
| Y - ISO Factor9 | 1.37 |
| G1 - Heat Generation Factor (Roller-Raceway) | 35.6 |
| G2 - Heat Generation Factor (Rib-Roller End) | 16.7 |
| Cg - Geometry Factor10 | 0.0876 |
| No. | Series | r - Cup Backface "To Clear" Radius2 | Design Units | Db - Cup Backface Backing Diameter | da - Cone Frontface Backing Diameter | D - Cup Outer Diameter |
|---|---|---|---|---|---|---|
| 69132RU | 65 | 1.0 | 7100 | 69132RU | 90 | 0.830 |
| OH3936H | 5.70 Kg | 9 mm | M6 | MBL36 | KML 36 | 87.00 mm |
| WR 30 | 0/-0.13 | 1.5 | 2.30 | WR 30 | 28.5 | 29.0 |
| ACQ580-01-011A-6-Architecture300 | 6.6 | 125 | 10 | 11 | 7.5 | 9.0 |
| LM282549D/LM282510 | 10.7500 in273.050 mm | LM282500 | 0.130 in3.30 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 36.6250 in930.275 mm |
| LH650271HLN1KCZ---+(60.5) | LH65HL | 60.5 | - | - | - | - |
| 23164EMD1 | 23164EMD1 | 169.000 | 27.0 | 320 | 5.0 | 880 |
| QVC12V203S | 4.23 | 2.84 | 13 lb5.9 Kg | 0883450090018 0883450090445 0883450101356 0883450101820 0883450108904 0883450109048 0883450116763 08 | 0.0015 in0.038 mm | 2-3/16 in |
| BA 188Z | 28.575 | BA 188Z | 19.5 | 28.575 | 34.925 | 8680 |
| X33122M/Y33122M | 56 mm2.2047 in | 33122 | 2 mm0.08 in | 2.5 mm0.1 in | 285 | METRIC |
