- Tapered Roller Bearings/TS (Tapered Single) Metric
- KJLM104948C/KJLM104910C

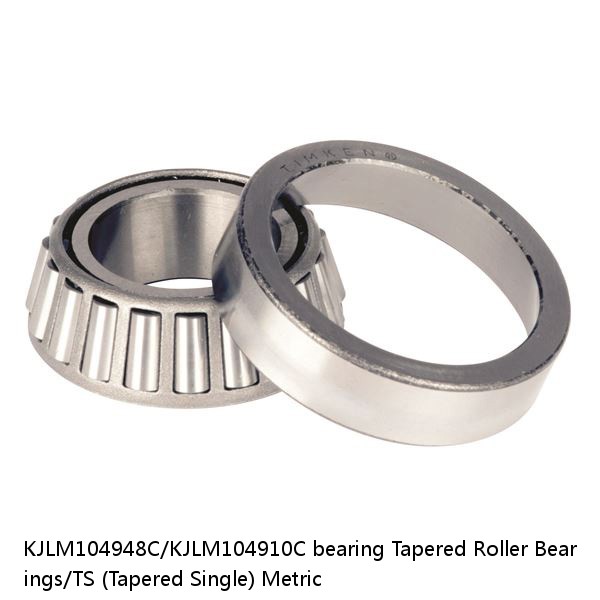

KJLM104948C/KJLM104910C bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
KJLM104948C/KJLM104910C PDF download| Price： | enquiry |
| Model Number： | KJLM104948C/KJLM104910C |
| Series： | 21.500 mm0.8465 in |
| r - Cup Backface "To Clear" Radius2： | LM104900C |
| Design Units： | 0.51 mm0.02 in |
| Db - Cup Backface Backing Diameter： | 3.050 mm0.12 in |
| da - Cone Frontface Backing Diameter： | 38.3 |
| Series | LM104900C |
| Cone Part Number | KJLM104948C |
| Cup Part Number | KJLM104910C |
| Design Units | METRIC |
| Bearing Weight | 0.4 Kg1 lb |
| Cage Type | Stamped Steel |
| d - Bore | 50.000 mm1.9685 in |
| D - Cup Outer Diameter | 82.000 mm3.2283 in |
| B - Cone Width | 21.500 mm0.8465 in |
| C - Cup Width | 17.000 mm0.6693 in |
| T - Bearing Width | 21.500 mm0.8465 in |
| R - Cone Backface "To Clear" Radius1 | 3.050 mm0.12 in |
| r - Cup Backface "To Clear" Radius2 | 0.51 mm0.02 in |
| da - Cone Frontface Backing Diameter | 55.88 mm2.2 in |
| db - Cone Backface Backing Diameter | 60.96 mm2.4 in |
| Da - Cup Frontface Backing Diameter | 78.00 mm3.11 in |
| Db - Cup Backface Backing Diameter | 74.93 mm2.95 in |
| Ab - Cage-Cone Frontface Clearance | 2.8 mm0.11 in |
| Aa - Cage-Cone Backface Clearance | -0.3 mm-0.01 in |
| a - Effective Center Location3 | -5.3 mm-0.21 in |
| C1 - Dynamic Radial Rating (1 million revolutions)4 | 71000 N16000 lbf |
| C0 - Static Radial Rating | 96000 N21600 lbf |
| K - Factor5 | 1.91 |
| e - ISO Factor6 | 0.31 |
| Y - ISO Factor7 | 1.97 |
| G1 - Heat Generation Factor (Roller-Raceway) | 38.3 |
| G2 - Heat Generation Factor (Rib-Roller End) | 20.2 |
| Cg - Geometry Factor8 | 0.0797 |
| No. | Series | r - Cup Backface "To Clear" Radius2 | Design Units | Db - Cup Backface Backing Diameter | da - Cone Frontface Backing Diameter | D - Cup Outer Diameter |
|---|---|---|---|---|---|---|
| K60x68x27 | K60x68x27 | 0.098 | 6500 | 4300 | 60 | 68 |
| DCS502B-5203-51R21P0000 | - | - | DCS502B-5203-51R21P0000 | - | - | A7 |
| SDA3840V-2G0+105LC0 | 105.000 | SDA3840V-2 | There is the groove on bo... | - | - | - |
| 23240CKE4 | 23240CKE4 | 57.10 | 360 | 2.0 | 2.9 | 1.9 |
| ZK310-28 | A-R1/8 | Heavy-duty(3) | ZK310-28 | 1 3/4 | - | - |
| NUP2319E | 95 | 3.0 | 3.0 | 10.300 | 3200 | 2600 |
| UCHP204D1 | UCHP204D1 | M5x0.8 | 20 | 12.7 | UC204D1 | 19 |
| 7936CDT FY | 180 | 2.0 | 7936CDT FY | 3700 | 2800 | 250 |
| E32015J | 25.00 | 75 | 4CC | 1.5 | 1.5 | 0.930 |
| QVVPKT13V204S | 4.15 | 2.79 | 22.00 lb10.00 Kg | 0883450149099 0883450149143 0883450153645 0883450153676 0883450176736 0883450176767 0883450185844 08 | 0.0015 in0.038 mm | 2-1/4 in |
