Deep Groove Ball Bearings
- Miniature Ball Bearings (600, 610, 620, 630)
- 609/ZZ/C3

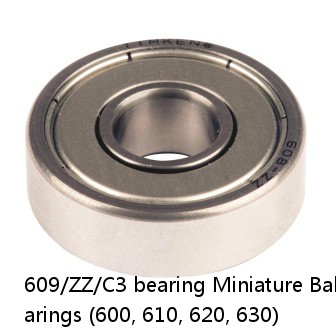

609/ZZ/C3 bearing | Miniature Ball Bearings (600, 610, 620, 630)
609/ZZ/C3 PDF download| Price： | enquiry |
| Model Number： | 609/ZZ/C3 |
| Weight： | 0.0130 Kg |
| Radius Rs min： | 0.300 mm |
| Outside Ring Width B： | 7.000 mm |
| Outside Diameter D： | 24.000 mm |
| Features： | 36000 rpm |
| Bore Size d | 9 mm |
| Features | Shields |
| Bearing Type | Standard DGBB |
| Weight | 0.0130 Kg |
| Clearance | C3 |
| Outside Diameter D | 24.000 mm |
| Outside Ring Width B | 7.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 3.4 kN |
| C0r - Static Load Rating | 1.4 kN |
| Grease Limiting Speed | 30000 rpm |
| Oil Limiting Speed | 36000 rpm |
| No. | Weight | Radius Rs min | Outside Ring Width B | Outside Diameter D | Features | Cr - Dynamic Load Rating |
|---|---|---|---|---|---|---|
| UCTH202-10J-150 | Normal-duty(2) | UCTH202-10J-150 | B-1/4-28UNF | 5/8 | - | - |
| 7238CDF FY | 190 | 1.5 | 4.0 | 3000 | 2200 | 7238CDFFY |
| NUP410W | Standard | 50 | 2.0 | 2.0 | 2.1 | 2.1 |
| K70x78X30H | K70x78X30H | 6000 | 70.000 | 78.000 | 21.80 | 139.00 |
| 23996KYMBW507C08C3 | 3.9 | 5.94 | 3.99 | 640 | 550 | 4.000 mm0.160 in |
| JM511946/JM511910 | 28.000 mm1.1024 in | M511900 | 2.54 mm0.1 in | 3.050 mm0.12 in | 76.3 | METRIC |
| UKF217+HE2317X | A-R1/8 | UKF217+HE2317X | Normal duty(2) | - | 3.00000000 | - |
| 25TAB06-2NKE | 25 | 0.6 | 1 | 0.24 | 4650 | 62 |
| 6202/2RS/C3 | 0.050 Kg | 0.600 mm | 11.000 mm | 35.000 mm | 28000 rpm | 19000 rpm |
| C 4128-2CS5V/GEM9 | 63 | - | - | 140.000 | 116.000 | 1200.000 |
