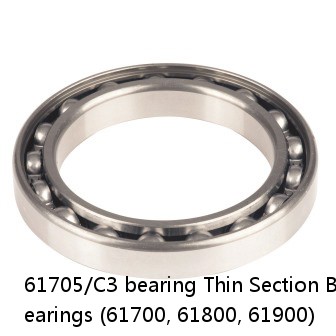

61705/C3 bearing | Thin Section Ball Bearings (61700, 61800, 61900)
61705/C3 PDF download| Price： | enquiry |
| Model Number： | 61705/C3 |
| Weight： | 0.0060 Kg |
| Radius Rs min： | 0.200 mm |
| Outside Ring Width B： | 4.000 mm |
| Outside Diameter D： | 32.000 mm |
| Features： | Open |
| Clearance | C3 |
| Bore Size d | 25 mm |
| Features | Open |
| Weight | 0.0060 Kg |
| Outside Diameter D | 32.000 mm |
| Outside Ring Width B | 4.000 mm |
| Radius Rs min | 0.200 mm |
| Cr - Dynamic Load Rating | 1.1 kN |
| C0r - Static Load Rating | 0.84 kN |
| Grease Limiting Speed | 7000 rpm |
| Oil Limiting Speed | 8000 rpm |
