Deep Groove Ball Bearings

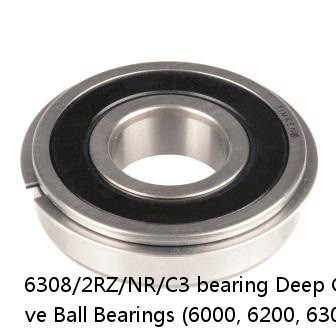

6308/2RZ/NR/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)

Buy Now
Contact Now

Price：	enquiry
Model Number：	6308/2RZ/NR/C3
Weight：	0.64 Kg
Radius Rs min：	1.500 mm
Outside Ring Width B：	23.000 mm
Outside Diameter D：	90.000 mm
Features：	12000 rpm

Clearance	C3
Bore Size d	40 mm
Features	Non-Contact Seals With Snap Ring
Bearing Type	Standard DGBB
Weight	0.64 Kg
Outside Diameter D	90.000 mm
Outside Ring Width B	23.000 mm
Radius Rs min	1.500 mm
Snap Ring Diameter D2 max	96.500 mm
Snap Ring Width f max	2.460 mm
Cr - Dynamic Load Rating	40.7 kN
C0r - Static Load Rating	24 kN
Grease Reference Speed	8500 rpm
Oil Reference Speed	12000 rpm
