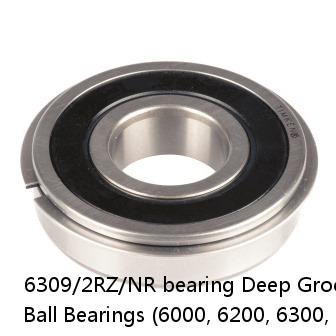

6309/2RZ/NR bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6309/2RZ/NR PDF download| Price： | enquiry |
| Model Number： | 6309/2RZ/NR |
| Weight： | 0.84 Kg |
| Radius Rs min： | 1.500 mm |
| Outside Ring Width B： | 25.000 mm |
| Outside Diameter D： | 100.000 mm |
| Features： | 11000 rpm |
| Clearance | C0 (Normal) |
| Bore Size d | 45 mm |
| Features | Non-Contact Seals With Snap Ring |
| Bearing Type | Standard DGBB |
| Weight | 0.84 Kg |
| Outside Diameter D | 100.000 mm |
| Outside Ring Width B | 25.000 mm |
| Radius Rs min | 1.500 mm |
| Snap Ring Diameter D2 max | 106.500 mm |
| Snap Ring Width f max | 2.460 mm |
| Cr - Dynamic Load Rating | 48.8 kN |
| C0r - Static Load Rating | 29.3 kN |
| Grease Reference Speed | 7800 rpm |
| Oil Reference Speed | 11000 rpm |
