NA 6919 Bearing | Loyal
NA 6919 PDF download| NA 6919 interchange SKF NA 6919 | |
| NA 6919 cross reference SKF NA 6919 | |
| NA 6919 Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | NA 6919 |

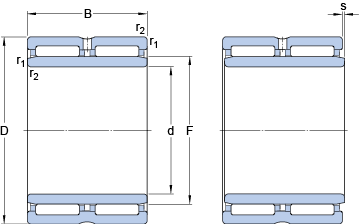

| s | 1 mm |
| d | 95 mm |
| D | 130 mm |
| B | 63 mm |
| F | 110 mm |
| s max. | 1 mm |
| series: | NA |
| flanges: | With Flanges |
| Category | Roller Bearings |
| Size (mm) | 130x95x63 |
| Inventory | 0.0 |
| Width (mm) | 63 |
| maximum rpm: | 4000 rpm |
| Mass bearing | 2.5 kg |
| closure type: | Open |
| Product Group | B04144 |
| overall width: | 63 mm |
| cage material: | Steel |
| Bearing number | NA 6919 |
| Limiting speed | 4000 r/min |
| bore diameter: | 95 mm |
| number of rows: | One |
| Reference speed | 3600 r/min |
| outside diameter: | 130 mm |
| precision rating: | Not Rated |
| bearing material: | Steel |
| Manufacturer Name | SKF |
| Weight / Kilogram | 2.604 |
| ra max. | 1 mm |
| Da max. | 123.5 mm |
| da min. | 101.5 mm |
| Bore Diameter (mm) | 130 |
| Outer Diameter (mm) | 95 |
| ra - max. | 1 mm |
| needle bearing type: | Machined Bearing with Inner Ring |
| Da - max. | 123.5 mm |
| da - min. | 101.5 mm |
| Minimum Buy Quantity | N/A |
| r1,2 min. | 1.1 mm |
| static load capacity: | 465 kN |
| dynamic load capacity: | 172 kN |
| lubrication hole type: | Hole on Outer Ring |
| r1,2 - min. | 1.1 mm |
| manufacturer upc number: | 7316577117380 |
| Basic dynamic load rating C | 172 kN |
| operating temperature range: | Maximum of +250 °F °F |
| Basic dynamic load rating - C | 172 kN |
| Fatigue load limit Pu | 56 kN |
| Fatigue load limit - Pu | 56 kN |
| Basic static load rating C0 | 465 kN |
| Basic static load rating - C0 | 465 kN |
